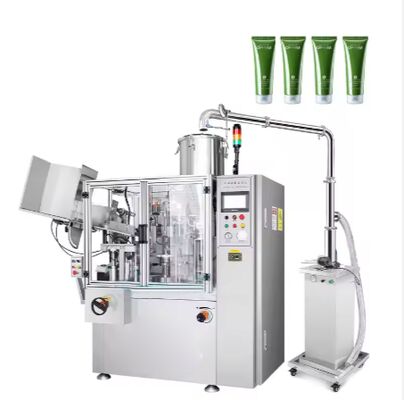

Name: Fully Automatic Aluminum Tube Filling and Sealing for MS Sealant High Speed Tube Filling Machine
Brand: Leadtop Pharmaceutical Machinery
SKU: Seria LTRG
Price: 32,505.00 USD
Availability: InStock

Dom > produkty > Automatyczna maszyna do napełniania i zamykania rur >

Fully Automatic Aluminum Tube Filling and Sealing for MS Sealant High Speed Tube Filling Machine

automatic aluminum tube filling machine

high speed tube sealing machine

MS sealant tube filling machine

Miejsce pochodzenia:

CHINY

Nazwa handlowa:

LTPM China

Orzecznictwo:

Numer modelu:

Seria LTRG

Skontaktuj się z nami

Poprosić o wycenę

Szczegóły produktu

Ocena automatyczna:

Automatyczny

Woltaż:

380(220)V/50Hz

Tworzywo:

SUS 304/316L

Zdolność produkcyjna:

25-40 szt./min

Silnik:

1,5 kW

Wysokość rury:

50-250 mm

Waga:

300 kg

Wymiar (L*W*H):

1500*700*1800mm

PRODUKTY POWIĄZANE

wideo

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Uzyskaj najlepszą cenę

wideo

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Uzyskaj najlepszą cenę

wideo

Cream Packaging Tabletop Aluminum Tube Filling and Sealing Semi Automatic Tube Filling Machine

Uzyskaj najlepszą cenę

wideo

Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Skontaktuj się teraz

Opis produktu

Automatic tube filling and sealing machine is suitable for aluminum and plastic tube filling and sealing.

1. Cosmetic products:Face cream, body cream, washing cream, hand cream etc

2. Food products: Condensed milk, chocolate,mustard,sauce ,ketchup,tomato,paste,mayonnaise etc

3. Chemical products: Hair color cream, welding paste,ink, paint ,pigment etc

4. Adhesive products: Instant glue, AB glue,silica gel,anaerobic adhesive, silicon

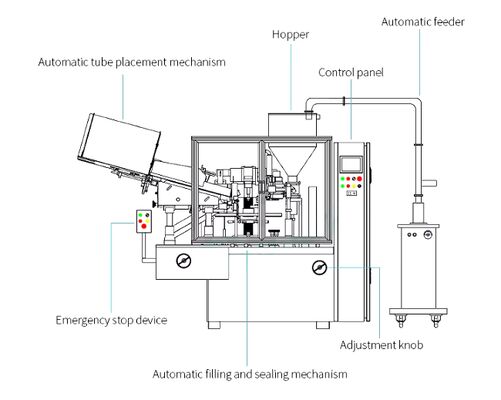

Main parts

Tube Loader, tube counting, eye mark,tube filling,heat sealing, tube folding, emboss batch no ,EXP date,plastic tube Cutting,

aluminum folding optional water chiller, heating machine, pump,laser printer etc.

① Automatic tube loading mechanism:

Put the tubes into the slot and they will be automatically transported to the work tray by the tunnel.

②Work tray:

The mold used to place the pipe, the diameter can be customized 13.5-60mm, one machine can customize multiple sets of molds for more pipes of different diameters

③Automatic photoelectric identification and benchmarking:

This sensor is for automatic orienting the tube according to the color mark on tube Tail

④Precision filling:

Filling nozzles will be customized according to different pipe diameters to ensure filling without splash/overflow

①Tube end folding device:

Combining several processes of bending, clamping and folding, it is used to seal the end of the tube. The date can be printed to the tail while it is sealed

②Automatic unloading:
The finished tube will be automatically unloaded from here

Supplier highlights

This merchant is both a manufacturer and trader, with quality control capabilities and full customization, design customization, sample customization services, holds product certifications, and has a customer satisfaction rate of 99.9%.

Production speed			30-80 pieces/min
Filling volume			5-300ml/piece
Filling accuracy			≤±0.5%
Applicable pipe diameter			13.5-60mm
Applicable tube length			up to 230mm
Voltage			380V
Working pressure			0.6Mpa
Size			2.38×1.2×2.3(m)
Net weight			1500kg
Optional			hose/aluminum tube/metal tube
